BACS Reports
Purpose
Automates the downloading of BACS and Faster Payments reports.
You can use the BACS Report Download node to create a workflow that autmatically connects to the BACS report service and downloads new reports in various different formats. Workflows can be extended to email downloaded reports to or securly download them to your own environment using the Agent.

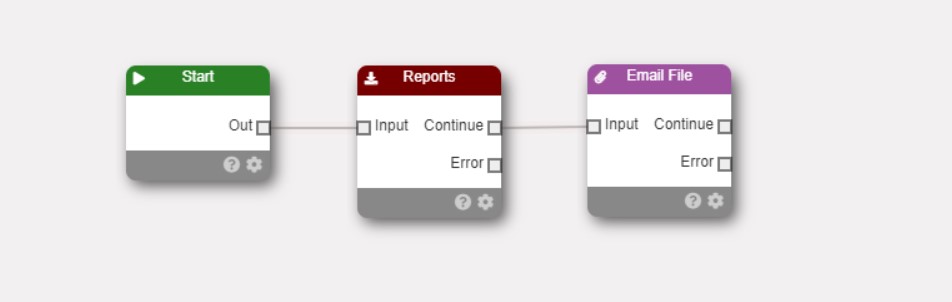

In the following simple example a trigger is created to automatically run the workflow once a days. When the workflow is run it connects to BACS and downloads all newly created reports. The reports are then added to an email as attachments and sent to members of the finance team.
Workflow Configuration
Report Service
The report nodes is compatible with both the BACS and Faster Payments reports services. You need to tell the node which report service you want to use so that the workflow connects to the correct service.
Report Type
Select the reports that you wish to download by ticking the boxes next to the report name.
Report Format
Determines the format of the downloaded report. There are slight differences in the available formats offered by the BACS and Faster Payments report services: - BACS offers HTML, CSV, PDF and XML formats, although not all reports are available in all formats - see table below - Faster Payments offers XML and CSV formats
| BACS Report | XML | HTML | CSV | |
|---|---|---|---|---|
| Advice of Unpaid Direct Debits (ARUDD) | Y | Y | Y | N |
| Unapplied Automated Credits User Copy (ARUCS) | Y | Y | Y | N |
| Arrival | Y | Y | N | N |
| Input | Y | Y | N | N |
| Withdrawal | Y | Y | N | N |
| AUDDIS File Acceptance | Y | Y | N | N |
| AUDDIS File Rejection | Y | Y | N | N |
| Submission Component History | Y | Y | N | N |
| Direct Debit Indemnity Claim Ad hoc challenge and response audit trail report | Y | N | Y | Y |
| Direct Debit Indemnity Claim Service User In Progress Challenge and Response Report | Y | N | Y | Y |
| Direct Debit Indemnity Claim In Progress Service user reason code 7 requests report | Y | N | Y | Y |
| ADDACS | Y | N | Y | Y |
| Advice of Bank Returned Direct Debit Instructions (AUDDIS) | Y | Y | Y | N |
| AWACS | Y | Y | Y | N |
| DDIC Advice | Y | Y | Y | N |
Save Path
This is the path that the report files will be automatically downloaded to when the workflow runs. The path is in your customer secure file area. Use the folder browser button to navigate to the desired folder. If required you can use the Agent to automatically retrieve the downloaded reports and store them within your organisation.
Report Age
Determines the maximum age of reports that are eligible to be downloaded. For example, selecting ‘Current Day’ will mean that only reports that have been generated today will be eligible to be downloaded.
Download previously accessed reports
The reports service keeps track of whether a specific report has already been downloaded. You can ignore reports that have already been downloaded (and perhaps minimise duplicate reports) by unselecting this option.
